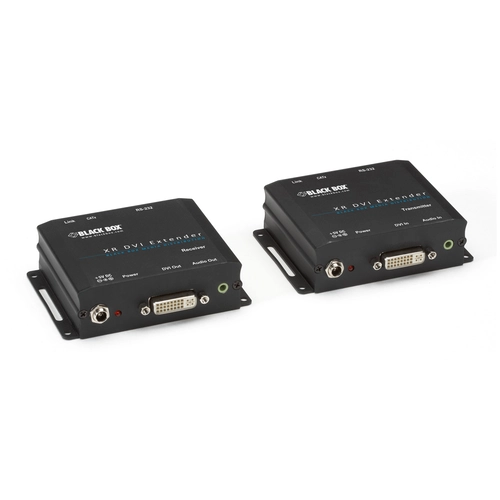

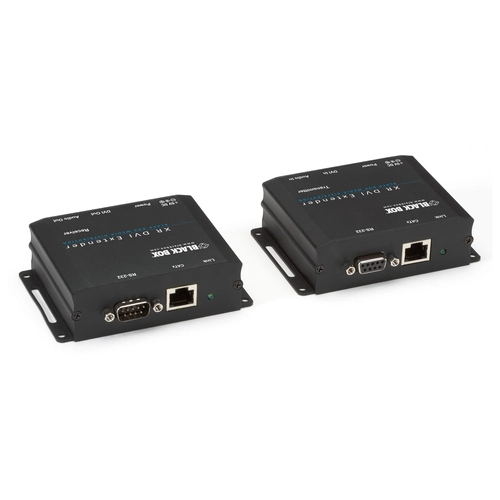

Black Box AVX-DVI-TP-100M XR DVI-D Extender with Audio and RS-232

Description

The Black Box AVX-DVI-TP-100M is an XR (eXtended Range) DVI-D extender that enables you to place a digital DVI screen up to 330 feet (100 meters) away from your video source using a single CAT5e/6/7 cable . This transmitter-receiver combo supports both HDTV resolutions up to 1080p and VESA standards up to 1920 x 1200, delivering high-quality video without compromising signal integrity over long distances. The extender integrates stereo analog audio into the CATx cable extension, eliminating the need for a separate audio cable. Additionally, it transmits bidirectional RS-232 TXD and RXD control signals, allowing you to use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy . The AVX-DVI-TP-100M is HDCP compliant and Blu-ray ready, supporting EDID and HDCP bypass so you can extend protected content. Auto equalization ensures consistent video quality across the extended range, and the wall-mountable receiver allows for flexible installation. No software or driver installation is required, and the extender complies with the DVI 1.0 standard. Distance depends on cable characteristics and quality, as well as the type of DVI source and display.
