Black Box KVXLCH-100 4K HDMI KVM Extender

Description

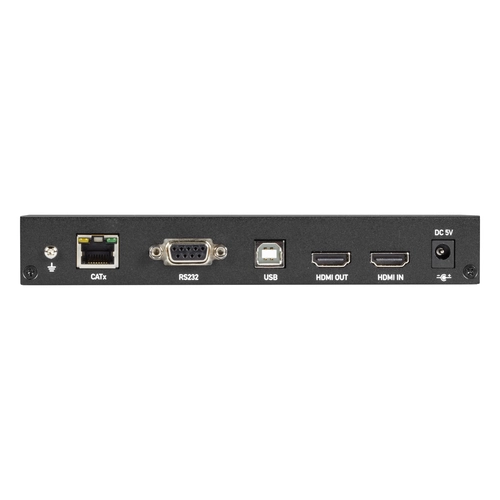

The Black Box KVXLCH-100 is a KVX Series high-performance KVM extender that transmits HDMI video, transparent USB 2.0, and audio over standard CATx cable up to 328 feet (100 meters). This extender supports UHD 4K resolutions up to 3840×2160 at 30Hz, delivering pixel-perfect video with no compression or latency. The KVXLCH-100 uses a single CAT5e/6/7 cable for transmission, simplifying installation and reducing cable clutter. The unit provides high-speed transparent USB 2.0 support for mass storage devices, webcams, and other isochronous peripherals, plus RS-232 serial and analog audio extension. The transmitter features a local video loop-out port for monitoring at the source, while the receiver provides two USB 2.0 ports for keyboard and mouse connectivity. Intelligent EDID management reduces monitor compatibility issues. The KVXLCH-100 can be mounted using the optional KVXLC-RMK rackmount tray. This extender is perfect for command and control centers, medical imaging, broadcast studios, and any application requiring 4K HDMI extension over CATx cabling.
