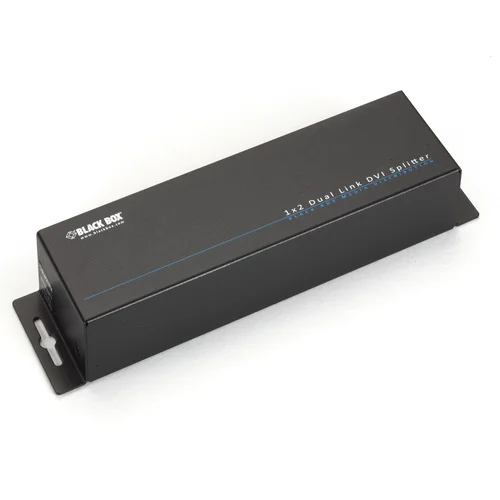

Black Box VSP-DLDVI1X2 Dual-Link DVI-D Splitter

Description

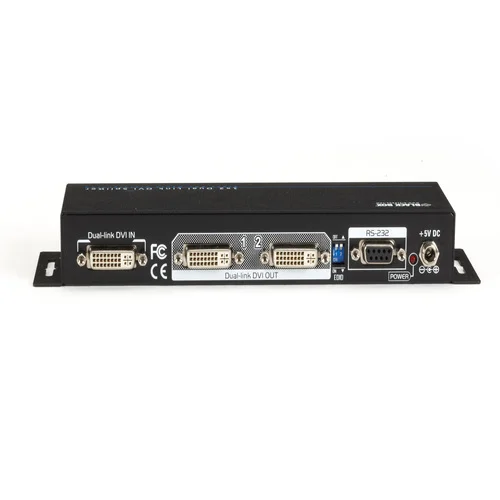

The Black Box VSP-DLDVI1X2 is a 2-port dual-link DVI-D splitter that allows you to duplicate ultra high-resolution video from a DVI source to two screen locations without any loss in quality . This distribution amplifier supports video resolutions up to 2560 x 1600, making it ideal for medical imaging, CAD/CAM workstations, and other applications requiring dual-link DVI performance. The splitter features a wide video frequency range of up to 300 MHz and includes DIP switch-selectable EDID learning of screen information to ensure proper resolution output . The unit includes electrostatic discharge (ESD) protection for reliable operation in demanding environments. The splitter is housed in a durable, wall-mountable metal chassis, making it suitable for permanent installations. Connectors include one DVI-I female video input and two DVI-I female video outputs, plus a DB9 female RS-232 port for firmware updates . The splitter accepts 100-240 VAC input and outputs 5 VDC at 4 A, with maximum power consumption of 20 watts. The VSP-DLDVI1X2 comes with a 3-Year Double Diamond Warranty and is ideal for digital signage, broadcast studios, classroom and conference presentations, and any video broadcasting application requiring dual-link DVI distribution .
